雙級壓縮螺桿空壓機

　　CART TSD series double stage compressor

　　TSD系列雙級壓縮高效節能型主機

　　TSD series High efficiency and energy saving AIR end with double stage

　　卡爾特TSD系列雙級壓縮機螺桿式空氣壓縮機，采用雙級壓縮螺桿主機。此種壓縮機的核心是我們經久耐用的兩級主機，兩級壓縮主機比傳統的一級壓縮主機平均節能15%。

　　TSD series double stage screw air compressor adopted double stage compressor screw, this type compressor air end are centrally part, the average energy saving more 15% compare with normal air compressor.

　　◆ 制造工藝、可靠性更高 Top manufacturing technical , higher reliability

　　卡爾特的雙級壓縮轉子經過二十道工序的精加工完成，保證了轉子線型的度、可靠性和有效性。

　　Quartes of double-stage compression rotor after the completion of the finish machining of 20 procedures, to ensure the accuracy, reliability and effectiveness of rotor.

　　◆ 減少軸承負荷 Reduce bearing load

　　每一級壓縮過程中會因壓縮比低，從而降低軸承的負荷，延長主機的壽命，我們所選擇的是質量的軸承，從而保證您所使用的壓縮機高效且可靠。

　　In each compression process, the compression ratio is lower, so that the bearing load and the life of the main engine are reduced. The best quality of the bearing is the best quality.

　　◆ 冷卻劑噴霧設計實現等溫壓縮 Coolant spray design for isothermal compression

　　壓縮熱是功率損耗的因素之一，二級壓縮效率高的原因之一是冷卻劑噴霧設計，主機在工作的過程中冷卻劑以噴霧形式向經過一級壓縮后的空氣噴射霧狀冷卻劑，使壓縮空氣達到更低的溫度，這樣壓縮空氣進入二級壓縮階段前，溫度就降低到了接近一級壓縮的進氣溫度，因此節約了壓縮所需能量。

　　Compression heat is the factor of power loss, one of the reasons for the high compression efficiency of two is coolant spray design, the main engine in the process of work in the process of cooling air spray mist with a compressed air to reach a lower temperature, this kind of compressed air into the two compression stage, the temperature is close to a compressed air inlet temperature, thus saving the required energy.

　　◆ 壓縮泄漏量更低 Lower compression leakage

　　傳統的單級壓縮機壓縮比是1:7、1:8、1:10、1:13，壓縮比越高泄漏量越大;而二級壓縮機主機的一級轉子壓縮比是1:3，二級轉子是3:7、3:8、3:10、3:13，壓縮比越低，泄漏量越低;因此采用雙級壓縮的形式實現了更低的壓縮比，從而壓縮泄漏更低。

　　The traditional single compressor compression ratio is 1:8, 1:10, 1:13, 1:7, the compression ratio is higher, and the two stage compressor is 1:3, the two stage rotor is 3:7, 3:10, 3:13, 3:8, the compression ratio is lower, so the lower compression ratio is achieved.

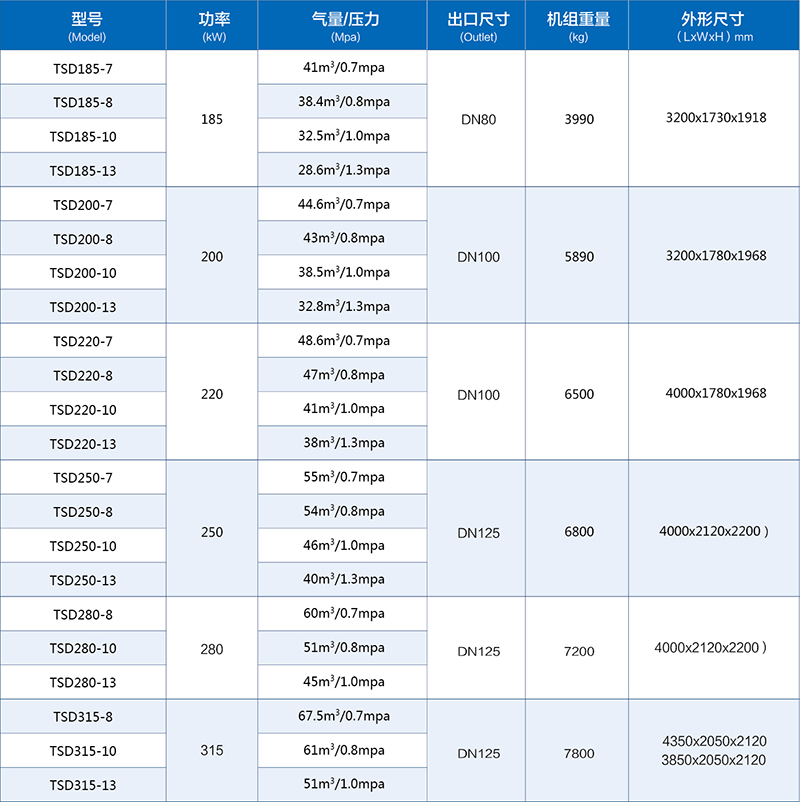

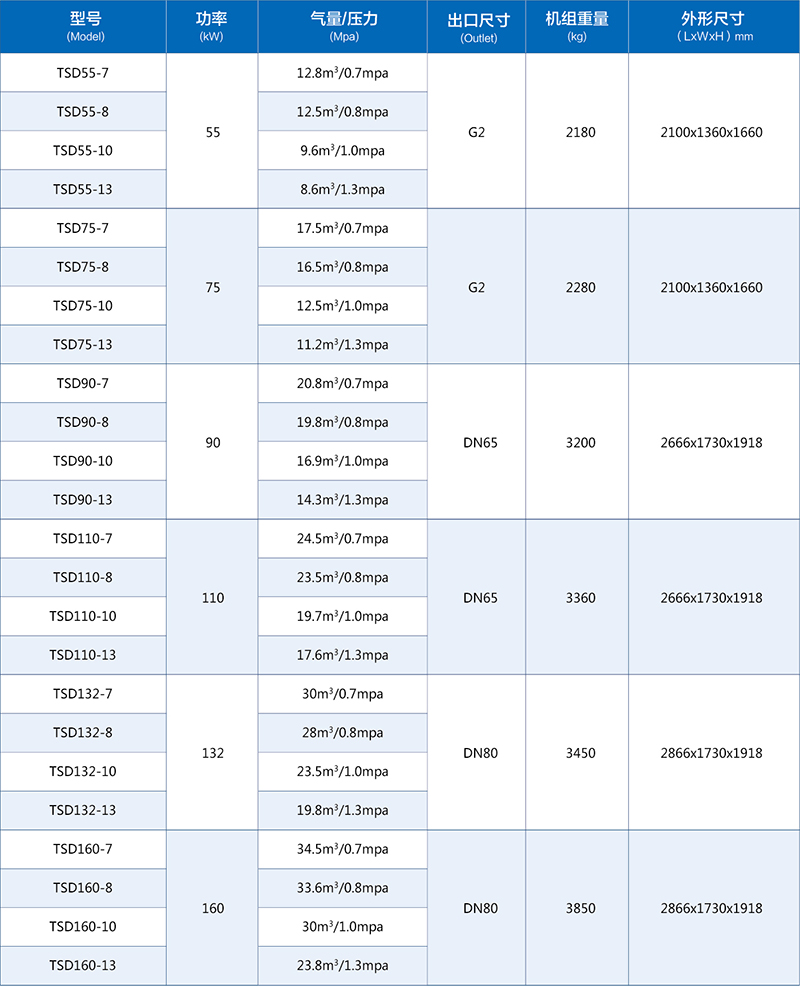

　　TSD系列雙級壓縮螺桿壓縮機技術參數

　　TSD series double stage compressor technical data

　　■ 標準電源：380V±10%/50HZ，460V/220V/6KV/10KV等電壓均可接受定做;

　　■ Srandard Power: 380V±10%/50HZ, 460V/220V/6kV/10kV and other voltage can be customized.

　　■ 11KW及以下為直接啟動,15KW以上為星三角啟動，可定做軟啟動;

　　■ 11KW or below 11KW adopts direct starting, Above 15KW applied with star-delta srarting. Sofr starting is available.

　　■ 工作環境溫度：-5℃-45℃;

　　■ Working environment temperature: -5℃-45℃;

　　■ F.A.D容積流量根據ASMC PTC9或IS 01217標準(GB/T3853)測試;

　　■F.A.D Capacity abided by ASMC PTC9 or IS01217 standard(GB/T3853)Tesl.

　　■ 傳動方式：直聯傳送;

　　■ Transmission mode: Belt driven.

　　■ 可定做排氣壓力1.7Mpa以上機型，歡迎洽談;

　　■ Welcome your request&inquiry, we could customize the pressure within 1.7Mpa for you.

　　■ 公司對產品不斷改進，保有設計變更權，參數或外觀更改，恕不另行通知。

　　■ We have the righr to change the appearance?meters of our products except informing.

• 風冷螺桿空氣壓縮機流程圖



  氣管路系統：

  1.   空氣濾清器、 2.進氣控制閥、 3.主機 、5.油氣分離器 、6.小壓力閥、 7.后冷卻器 、8.氣水分離器

  油管路系統：

  2.   主機 4.油過濾器 5.油氣分離器 9.油冷卻器



  水冷螺桿空氣壓縮機流程圖



  氣管路系統：

  1.空氣濾清器 、2.進氣控制閥 、3.主機 、4.油氣分離器 7.壓力閥 、8.后冷卻器 、10.氣水分離器。

  油管路系統：

  3.主機、 4.油氣分離器、 5.油過濾器、6.恒溫閥(水冷機用) 、9.油冷卻器

典型配置圖
